Place of Origin:
China
Nom de marque:
Amber
Certification:
CE, ISO, GMP
Model Number:
Am-AHD018
contactez-nous

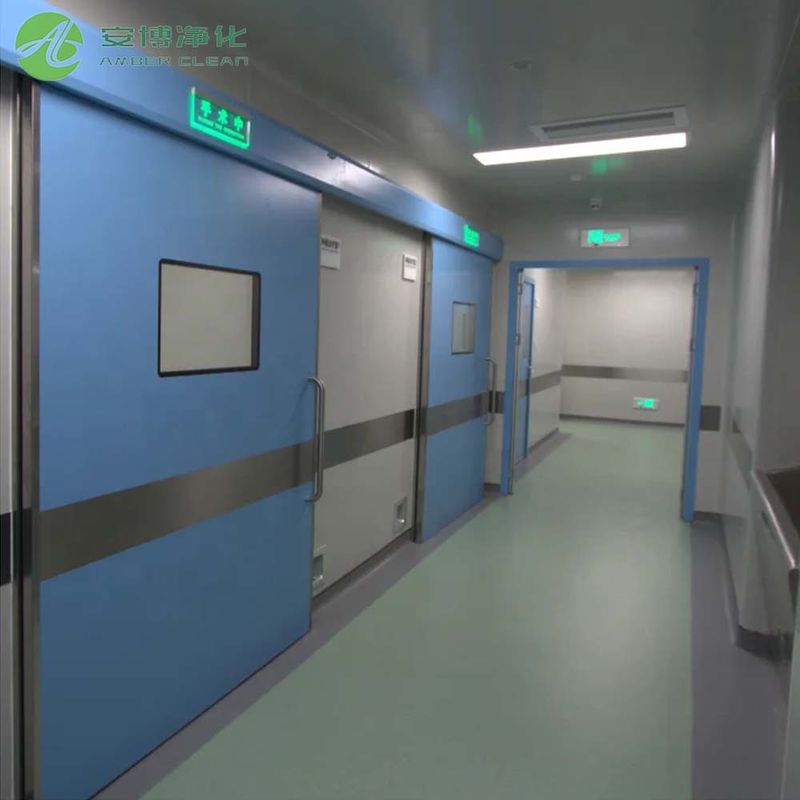

Soundproofing Airtight Sliding Door is made of stainless steel, which has sound insulation and excellent airtightness. It can effectively block air convection and noise interference, ensure the cleanliness and quietness of the indoor environment, and is often used in operating rooms, ICUs, laboratories and other places.

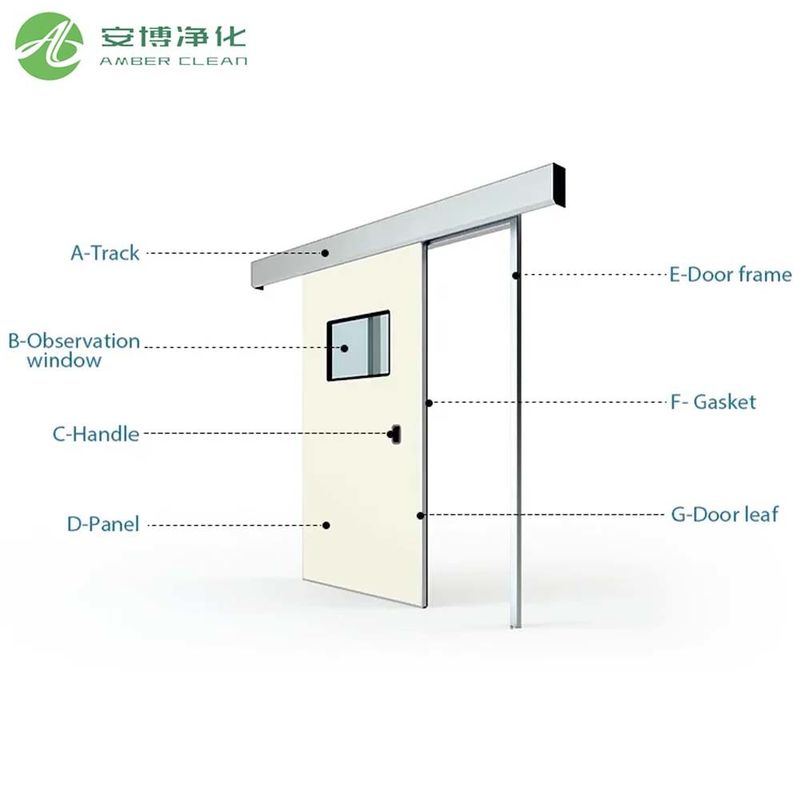

Airtight Sliding Door refers to a special door that can fit tightly with the door frame after the door is closed, forming a good sealing effect, and preventing air, dust, bacteria, etc. from entering or leaking from the door gap. It is usually equipped with the Airtight Automatic Door system to achieve automatic switching and inductive operation to avoid contact and cross infection.
These application scenarios have strict requirements on air tightness and smooth and silent opening and closing.
As a professional Modular Operating Theater solution provider, Amber has more than 17 years of rich experience in the clean industry. AMBER not only provides high-quality clean door products, but also can be equipped with a full set of medical clean equipment such as surgical lights, operating tables, FFU fan filter units, air showers, etc., to provide one-stop clean space customization services for hospitals and pharmaceutical customers.
Model | 1200*2100 | 1500*2100 | 1800*2100 | 2000*2100 |
Door size mm(W*H)
|
1200*2100 | 1500*2100 | 1800*2100 | 2000*2100 |
Door hole size mm (W*H)
|
1100*2050 | 1400*2050 | 1700*2050 | 1900*2050 |
Motor slide rails mm (Length) | 2600 | 3200 | 3800 | 4200 |
Motor slide rails mm (Heigth) | 2270 | 2270 | 2270 | 2270 |
Door windows | Window with arc | |||
Door fillings |
Fire-resistant aluminum honeycomb
|
|||
Door surface treatment
|
Indoor surface electrostatic spraying/outdoor fluorocarbon spraying /304 stainless steel
|
|||
Opening method
|
Hand/foot/infrared/microwave induction
|
|||
Operating speed of
open and closed door
|
250-550mm/s(Adjustable)
|
|||
Power voltage
|
AC220V 50-60HZ
|
Q1: What sizes and opening methods are available for AMBER Stainless Steel Airtight Sliding Doors?
A: We provide standard sizes (1200×2100mm) and support customized services, which can be customized according to the door opening sizes and wall structures of different operating rooms.
The opening methods include radar sensing, hand sensing, foot switch, access control linkage, etc., to meet the automatic door control needs of different hospitals.
Q2: In addition to hospitals, what other places can this airtight automatic door be used for?

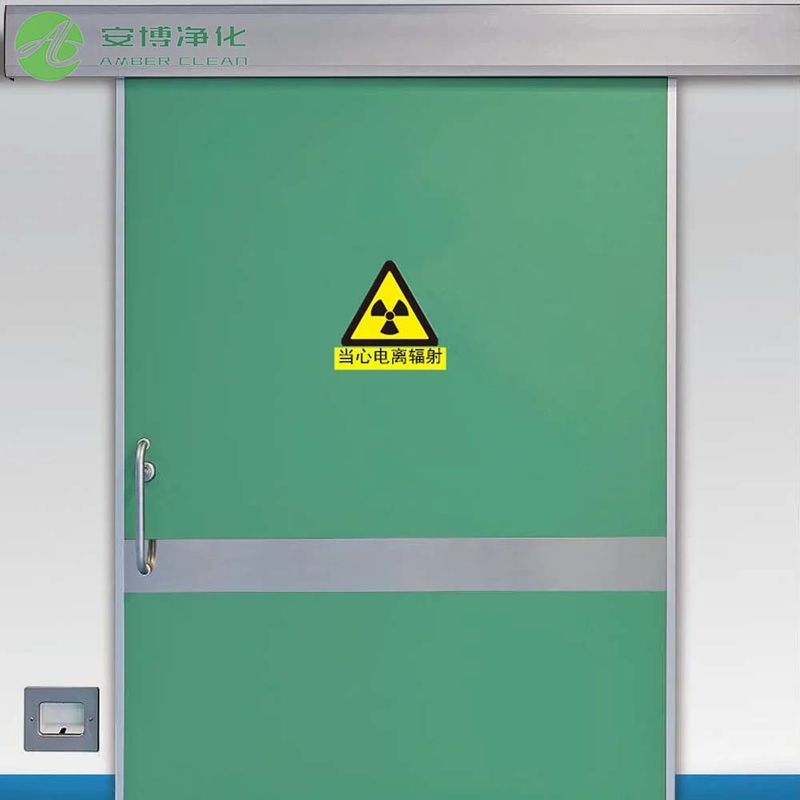

A: In addition to hospital operating rooms and ICUs, Airtight Automatic Door is also widely used in biopharmaceutical workshops, food clean workshops, electronic dust-free workshops, experimental animal centers, and radiology shielding door systems, etc. It is applicable to all clean places that require airtightness, sound insulation, and barrier-free operation.
