PLC Integrated Control Surgical Modular Operating Theatre Turnkey Solution Service

Specifications

Amber purification catalog.pdf

Modular Operating Rooms have turned into an essential solution in the current healthcare sector to guarantee a safe environment during surgical procedures, efficient space management, and international cleanroom requirements. Amber with more than 17 years experience in the cleanroom industry, we offer a turnkey solution service to the clients including the design services, material selection, installations, and delivery of the cleanroom services including the functional layout needs and the requirements of the cleanroom in various situations.

Core Advantages of Modular Operating Rooms

High Cleanliness and Safety

Through scientific modular operating room ceiling design and air flow control, modular operating rooms achieve efficient airflow distribution and contamination isolation, ensuring indoor air cleanliness levels of Class 100 or Class 1000, minimizing the risk of cross-infection.

Flexible Configuration and Efficient Installation

Modular operating room installation utilizes factory prefabrication and rapid on-site assembly, shortening the construction cycle and facilitating future expansion and renovation, saving time and costs for hospitals, pharmaceutical manufacturers, and research institutions.

Materials and Applications

Based on the functional requirements of different areas, we offer a variety of specialized cleanroom panels that can be flexibly combined for modular operating room wall and ceiling systems:

• Stainless steel cleanroom panels (0.8–1.2mm): Recommended for central supply rooms and operating rooms, they offer durability, corrosion resistance, and easy cleaning.

• Electrolytic steel cleanroom panels (1.2–1.5mm): Suitable for ICUs and operating rooms, featuring a smooth surface and strong chemical resistance.

• Inorganic pre-coated cleanroom panels/Compact cleanroom panels (5–6mm): Commonly used in corridors and ICUs, they offer fire, moisture, and abrasion resistance.

• Cleanroom glass panels (6–10mm): Suitable for corridors and select operating room areas, offering both aesthetics and light transmittance.

These Sandwich Wall Panels are not only high-performance in terms of their durability and cleanliness in the operating room, but also can be seamlessly incorporated into the modular operating room ceiling system in different functional areas to coordinate the overall space and user experience.

Our Specialties: Customized Design and Turnkey Service

• We tailor the layout and construction plan to the client's grade requirements and site conditions.

• We offer personalized color and material combinations to meet both functional and aesthetic needs.

• Our professional team oversees the entire Modular Operating Room installation process, from structural construction to system commissioning, ensuring every detail meets international standards and requirements.

The core components of a modular operating room

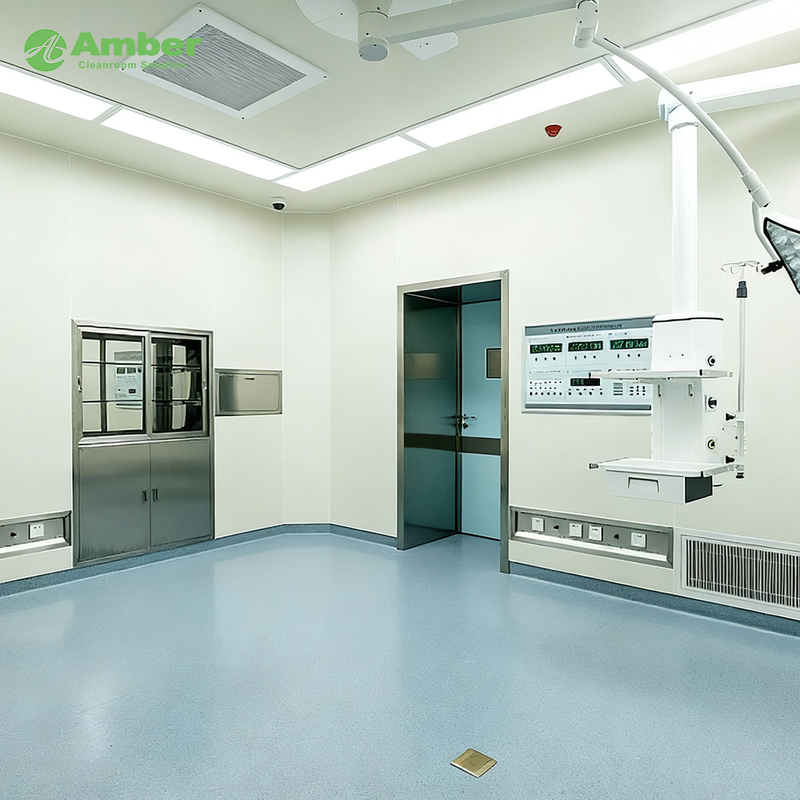

Wall Sandwich Panels Structure

High-grade cleanroom panels ensure indoor air cleanliness levels ranging from Class 100 to Class 10000, meeting the needs of a variety of surgical procedures.

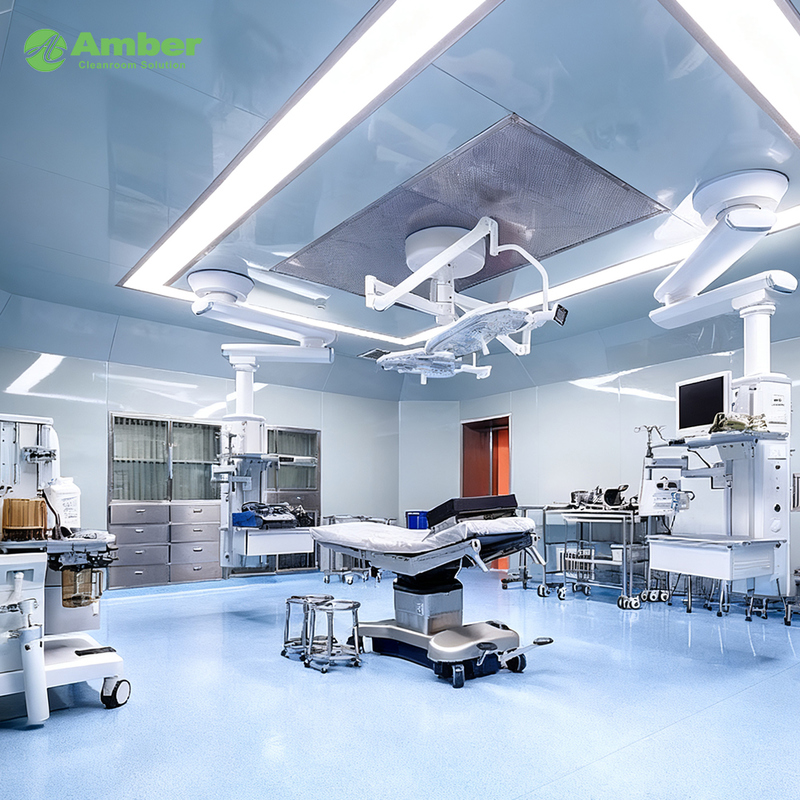

Laminar Air Flow Ceiling System

Standard size

2600*2400*500mm Class 100

2600*1800*500mm Class 1000

2600*1400*500mm Class 10000

Equipped with a high-efficiency filtration unit (HEPA/ULPA) and laminar air flow technology, it ensures stable airflow within the operating room, reducing airborne particulate and microbial contamination.

Intelligent Control System

Integrated temperature and humidity control, lighting system, positive pressure control, and other functions ensure a stable and reliable surgical environment.

Airtight Automatic Door

The airtight automatic door (airtight sliding door) is one of the translation suite doors, providing airtightness, sound insulation, heat preservation, pressure resistance, dust prevention, and fire prevention.

It is mainly used in clean operation departments, purified wards, ICUs, clean corridors, laboratories, isolation and infection wards, and other locations.

Medical Facilities and Integrated Design

Surgical LED Light, Surgical Pendant, Medical Cabinets, Medical Gas Terminals, and information management terminals make the operating room theater more intelligent and convenient.

LED Surgical Light

Surgical Pendant

Medical Cabinets

We have over 17 years of experience in the modular operating theater industry and have served more than 120 countries. When you need some questions related to the Modular Operating Theater project, you may contact us and obtain solutions on a specific case.

FAQ

Q1: How long does it take to complete a modular operating room installation?
A: The specific construction time depends on the area and functional complexity. Generally speaking, the construction cycle for a modular operating room is 30–40% shorter than traditional methods, with the design and delivery typically taking between weeks and months.

Q2: Can modular operating rooms meet the requirements of different cleanliness levels (e.g., Class 100, Class 1000)?
A: Absolutely. We design airflow distribution and select appropriate filtration systems based on customer needs. Combined with integrated PLC control, we enable flexible configuration of operating room air cleanliness levels from Class 100 to Class 10,000, ensuring compliance with ISO and GMP standards.
